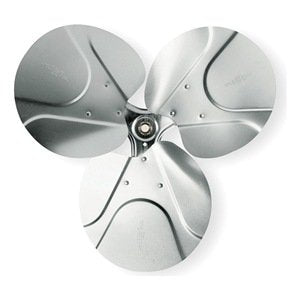

Name: DAYTON Blade Fan 24 In 4C463
Brand: Dayton
SKU: DHYB000E232TA
Price: 102.60 USD
Availability: InStock

Was: $123.99 Save 17% Extra Today! Sale $102.60 & FREE Shipping Lower than our AMAZON price

In stock, ready to ship
Backordered, shipping soon

Quantity

Get it by - 🚚

SKU:

DHYB000E232TA

Save Now | Buy Direct

Accredited Business

Guaranteed Quality

Easy Returns

FREE Shipping

24/7 CustomerSupport

Item Name:
DAYTON Blade Fan 24 In 4C463

Description:
Air Circulator and Exhaust Fan Aluminum Replacement Propellers No. of blades: 3 CW rotation facing discharge Embossed aluminum blades and spiders for strength and rigidity Hubs include set screws (hub on intake side) For low static pressure applicationsNote: Air deliveries based on standard test codes of AMCA. When used in system over 0.250" SP, increase motor HP to next larger size.

Item: Propeller
Type: Replacement
Propeller Dia. (In.): 24
Bore Dia. (In.): 5/8
Number of Blades: 3
Pitch (Deg.): 11
Blade Material: Aluminum
Rotation: CW Facing Discharge
Required Motor HP: 1/12
Required HP @ Higher RPM: 1/4
Required HP @ Lower RPM: 1/12
RPM Low: 1140
RPM High: 1725
Max. RPM: 1725
CFM @ 0.000-In. SP: 3573/2361
CFM @ 0.125-In. SP: 3290/1949
CFM @ 0.250-In. SP: 3023/1599
Blade Height (In.): 2-7/8
Blade Width (In.): 11-13/16
Remarks: View Catalog Page For Better Selection Criteria
For Use With: Exhaust Fans and Circulators
